The image shown is an example. The actual item may vary.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Mfg #: Friedrich
5 Ton, 208-230V/1PH/60Hz, 16 SEER2, Inverter Driven Variable Speed, Heat Pump (R-454B)
| Location | Available |
|---|---|
| Signal Hill | 0 |
| Las Vegas | 0 |
| Tustin | 4 |
| Concord | 0 |
| San Bernardino | 0 |
| Pomona | 0 |
| Cathedral City | 0 |
| San Jose | 0 |
| El Cajon | 2 |
| Van Nuys | 0 |
| City of Industry | 0 |
| West Los Angeles | 0 |
| Los Angeles | 0 |
| Torrance | 0 |
| San Diego | 0 |
| San Leandro | 0 |
| Escondido | 0 |
Item ID
0896915000
Mfg #
Friedrich
Unit of Measure
EA
Model
RD16AY
Product
Split System Heat Pump
Refrigerant
R-454B
Voltage
208-230V/1PH/60Hz
Compressor (RLA)
6.1
Equipment Line
F-Series Plus, Endeavor Line - EcoNet Enabled
SEER
16 SEER2
Compressor (LRA)
61
Tons
5
Dimensions (in) H x L X W
46.40 x 42.30 x 22.80
Line Size (Liquid)
3/8
Line Size (Suction)
7/8
Min Circuit (Amps)
31
Recommended Air Handler
FRH2VY6021STACAJ 230V or FRH2VY6024STACNJ 230V
Recommended Evaporator Coil
TCFY6021STAAMC
Refrigerant furnished oz.
169
Weight lbs.
254
Max Fuse (Amps)
55
Nominal Capacity
60,000
Recommended Furnace
FR801V1005A21UHUCAP - ULTRA LOW NOX, FR801V1005A21UHNCAP - LOW NOX
Stage
Fully Variable
Popular items frequently purchased together
Mfg #: Friedrich
TCFY6021STAAMC
5 Ton, 21" Cabinet Width, Standard Efficiency, R-454B, Factory Installed Sensor, Multi-Position Evaporator Coil
Price unavailable
/EA
Price unavailable
/EA
Mfg #: Friedrich

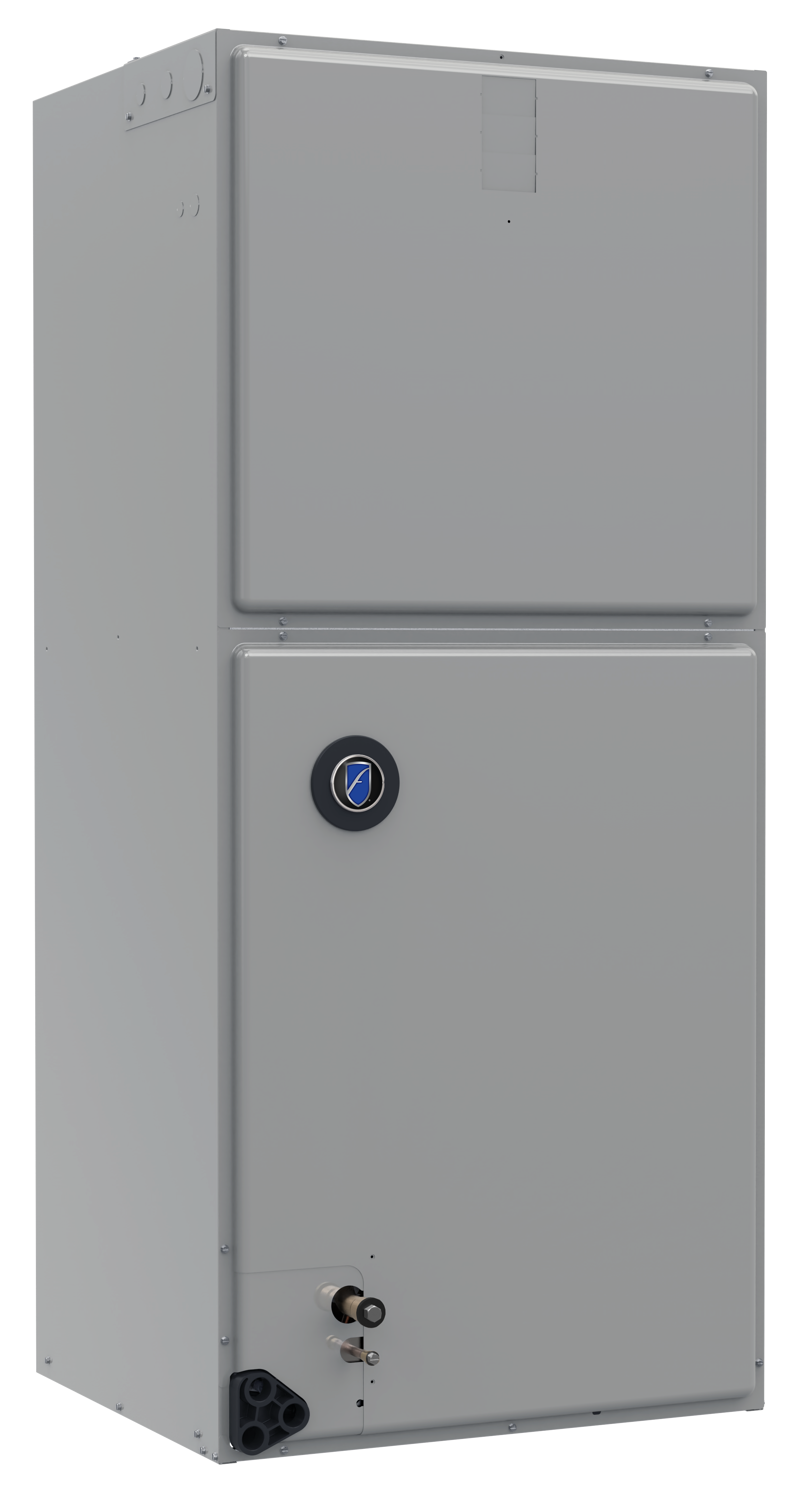

FRH2VY6021STACAJ
