The image shown is an example. The actual item may vary.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Mfg #: Honeywell Home
Digital Non-Programmable Multi-Stage N100 FocusPro Thermostat
| Location | Available |
|---|---|
| Signal Hill | 47 |
| Las Vegas | 12 |
| Tustin | 2 |
| Concord | 1 |
| San Bernardino | 1 |
| Pomona | 1 |
| Cathedral City | 53 |
| San Jose | 1 |
| El Cajon | 2 |
| Van Nuys | 2 |
| City of Industry | 1 |
| West Los Angeles | 1 |
| Los Angeles | 2 |
| Torrance | 2 |
| San Diego | 2 |
| San Leandro | 1 |
| Escondido | 2 |
Item ID
1330826000
Mfg #
Honeywell Home
Unit of Measure
EA
Application
Conventional or Heat Pump
Product
N100 FocusPro Thermostat
Type
Digital Non-Programmable Thermostat
Color
White
Item Type
Product
Dimensions (in.)
5.125 in. W x 3.438 in. H x 1.188 in. D
Electrical Ratings
20 to 30 Vac
Frequency
60 Hz
Includes
Thermostat, UWP mounting plate, Decorative cover plate with J-box adaptor, mounting hardware, AA batteries, literature
Mounting
UWP Mounting System
LEDs
LED Back Light
Accuracy (C)
0.5 C
Accuracy (F)
1 F
Changeover
Auto or Manual
Cool Current
0.02 A to 1.0 A running
Differential Temperature (C)
± 0.5 C
Differential Temperature (F)
± 1 F
Dimensions of Thermostat
130 mm W x 87 mm H x 29.5 mm D
Display
Medium display
Display Size (Sq. In.)
4.09
Electrical Connection
UWP Mounting System
External Sensors Available
C7089U1006 wired outdoor sensor
Fan Current
0.02-.05 A
Heating
0.02-1.0 A
Operating Humidity Range (% RH)
5 to 90% RH, non-condensing
Operating Temperature Range (C)
0 °C to 48.9 °C
Operating Temperature Range (F)
32 °F to 120 °F
Power Source
Battery or Hardwired
Range °F
Non-Programmable
Setting Temperature Range (C)
Heat: 0 C to 32 C; Cool: 10 C to 37 C
Setting Temperature Range (F)
Heat: 32 F to 90 F; Cool 50 F to 99F
Shipping and Storage Temperature Range (C)
- 28.9 C to 48.9 C
Shipping and Storage Temperature Range (F)
- 20 F to 120 F
Stages
3H/2C
Supply Voltage
20 to 30 Vac
Switch Positions (System)
AUTO-ON-CIRC
Switch Positions (System)
HEAT-OFF-COOL-AUTO-EM.HEAT
Switch Type
Relay
Temperature Control Mode Selections
Ambient Air Temperature
Terminal Designations
RC, R, C, W, W2-AUX, Y, Y2, O/B, G, K, L, E, S, S
Dimensions (mm)
130 mm W x 87 mm H x 29.5 mm D
Heat Current
0.02-1.0 A
Power Method
Battery or Hardwired
Power Method
Non-Programmable
Switch Positions (Fan)
AUTO-ON-CIRC
Programmability
Non-Programmable
Popular items frequently purchased together
Mfg #: Honeywell Home

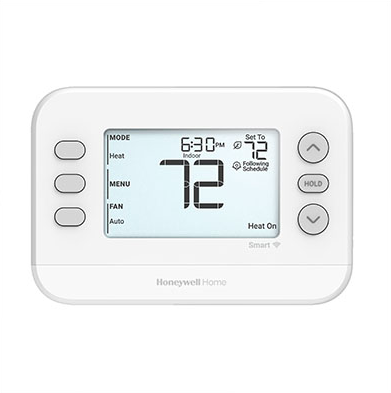

TH2320WF4010/U
Digital Programmable Multi-Stage S200 FocusPro Smart WiFi Thermostat
Price unavailable
/EA
Price unavailable
/EA
Mfg #: Honeywell Home

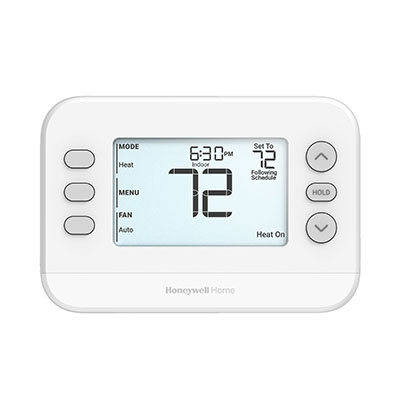

TH2320U4006/U
Digital Programmable Multi-Stage P200 FocusPro Thermostat
Price unavailable
/EA
Mfg #: Honeywell Home

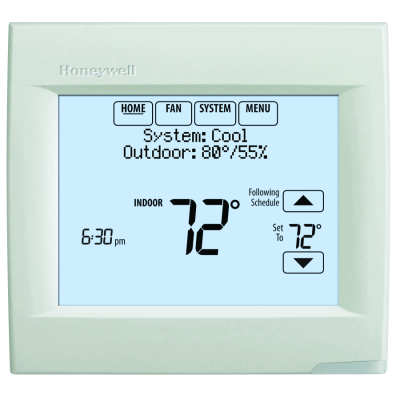

TH8320R1003
