Mfg #: Kmc Controls
0-1" Range, 8 psig Start, "Universal" Reset Volume Controller
| Location | Available |
|---|---|
| Signal Hill | 121 |
| Las Vegas | 0 |
| Tustin | 19 |
| Concord | 1 |
| San Bernardino | 1 |
| Pomona | 4 |
| Cathedral City | 1 |
| San Jose | 7 |
| El Cajon | 1 |
| Van Nuys | 10 |
| City of Industry | 3 |
| West Los Angeles | 2 |
| Los Angeles | 2 |
| Torrance | 4 |
| San Diego | 1 |
| San Leandro | 1 |
| Escondido | 0 |
Item ID
1578040000
Mfg #
Kmc Controls
Unit of Measure
EA
/images/items/CSC-3011-FC.jpg
Product
Controller
Product Specific
Reset Volume Controller
Additional Information
Direct or Reverse acting reset (normally open or normally closed damper settings)
Weight
11 oz.
Material
ABS
Air Connections - Outlet Gauge Port, Reducing Bushing
28.8 Scim @ 20 Psig
Damper Action
Factory Set @ NO, Adjustable For NC or NO
Differential Pressure
0 To 1.0" Wc
Main Air Pressure
15 To 30 Psig
Max Signal Pressure
6" Wc Applied To Either Port (H or L)
Operating Temperature Range (°C)
40º To 120º F
Output Sensitivity
5 Psi/0.02" Wc
Reset Span
Factory Set @ 5 Psig
Reset Start Point
8 Psig
Setpoint Range Maximum
0 To 1.0" Wc
Setpoint Range Minimum
0 To 1.0" Wc
Thermostat For Cooling
Direct Or Reverse Action
Operating Temperature Range (°F)
40º To 120º F
Air Consumption
28.8 Scim @ 20 Psig
Thermostat
Direct Or Reverse Action
Popular items frequently purchased together
Price unavailable
/EA
Price unavailable
/EA
Price unavailable
/EA
Price unavailable
/EA
Mfg #: Schneider Electric

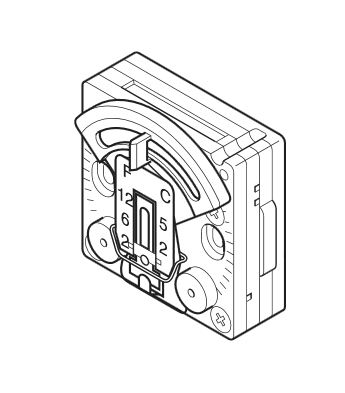

2212-118
