The image shown is an example. The actual item may vary.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Mfg #: Pro1 Technologies

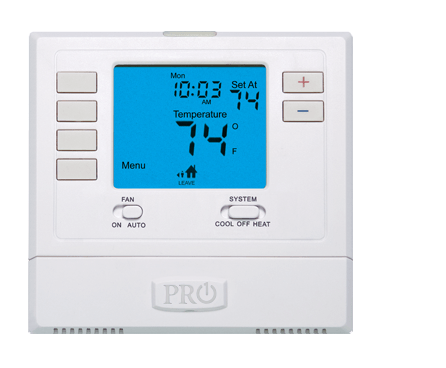

Digital Non-Programmable Single Stage 4" Display Thermostat
| Location | Available |
|---|---|
| Signal Hill | 202 |
| Las Vegas | 8 |
| Tustin | 3 |
| Concord | 7 |
| San Bernardino | 22 |
| Pomona | 1 |
| Cathedral City | 30 |
| San Jose | 13 |
| El Cajon | 7 |
| Van Nuys | 6 |
| City of Industry | 50 |
| West Los Angeles | 19 |
| Los Angeles | 14 |
| Torrance | 1 |
| San Diego | 1 |
| San Leandro | 0 |
| Escondido | 2 |
Item ID
2189400000
Mfg #
Pro1 Technologies
Unit of Measure
EA
Application
Conventional or Heat Pump
Product
T701 Thermostat
Type
Digital Non-Programmable Thermostat
Dimensions of Thermostat
4.7"W x 4.4"H x 1.1"D
Display Accuracy
± 1 °F
Max Stages (Conventional)
1 amp per terminal, 1.5 amp maximum all terminals combined
Operating Ambient
32° to +105° (O° to + 41°C)
Operating Humidity
90% non-condensing maximum
Power Source
18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire) Battery power from 2 AA Alkaline Energizer batteries
Range °F
Non-Programmable
Stages
1H/1C
Terminals
Rh, Rc, C, Y, W, G, O, B
The Display Range of Temperature
41°F to 95°F (5°C to 35°C)
Load Rating
1 amp per terminal, 1.5 amp maximum all terminals combined
Power Method
Non-Programmable
Swing (cycle rate or differential)
Heating is adjustable from 0.2°F to 2.0°F Cooling is adjustable from 0.2°F to 2.0°F
The Control Range of Temperature
44°F to 90°F (7°C to 32°C)
Programmability
Non-Programmable
