The image shown is an example. The actual item may vary.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Mfg #: Tecumseh
1 HP, R404/448/449/452A, 208-230-1-60, Medium Temperature, ARGUS Condensing Unit
| Location | Available |
|---|---|
| Signal Hill | 0 |
| Las Vegas | 0 |
| Tustin | 0 |
| Concord | 0 |
| San Bernardino | 0 |
| Pomona | 0 |
| Cathedral City | 1 |
| San Jose | 0 |
| El Cajon | 0 |
| Van Nuys | 0 |
| City of Industry | 1 |
| West Los Angeles | 0 |
| Los Angeles | 1 |
| Torrance | 0 |
| San Diego | 0 |
| San Leandro | 0 |
| Escondido | 1 |
Item ID
2666490000
Mfg #
Tecumseh
Unit of Measure
EA
/images/items/ARGUS.JPG
Additional Unit Information
Defrost Timer Included
Application
Medium Temperature
AWEF (Annual Walk-In Energy Factor)
R404A (7.69), R448/449A (7.60), R452A (7.60)
Bill of Material
Bill of Material 2JH1001-PF (AWEF COMPLIANT)
Compressor
AK4513Z-NA3C, Bill of Material AK4ZC1ET107J70
Compressor - Family
AK2
Compressor - LRA
31.3
Compressor - Type
Reciprocating
Connection - Liquid
3/8 ODF
Connection - Suction
5/8 ODF
Design Pressure - High
450
Design Pressure - Low
181
Dimension L x W x H (in)
28.4 x 28.4 x 18.5
Fan Motor - HP
1/20
Fan Motor - Quantity
1
Fan Motor - RLA
.45
HP
1
Min Circ Amps
9.6
Oil Type
Polyolester
Overload
K90-84
Product
ARGUS Series Condensing Unit
Pump Down Capacity (lbs)
R404A (22.12), R448/449A (23.32), R452A (23.85)
Rating Point
25°F
Refrigerant
MULTI-REFRIGERANT
Relay
K71-19
Release Variant
Platinum, tube and fin with PSC fan motor
Run Capacitor
K150-07, 25 MFD/370 Volt
R448A/R449A Capacity (Btuh)
(8,190 @ 80ºF), (7,497 @ 90ºF), (7,151 @ 95ºF), (6,805 @ 100ºF), (6,112 @ 110ºF)
R452A Capacity (Btuh)
(8,991 @ 80ºF), (8,169 @ 90ºF), (7,758 @ 95ºF), (7,347 @ 100ºF), (6,525 @ 110ºF)
Start Capacitor
K146-02, 72_88 MFD/330 Volt
Type
Outdoor
Voltage
208-230-1-60
Weight (lbs)
238
Compressor - RLA
7.1
Max Fuse Amps
15
R404A Capacity (Btuh)
(9,835 @ 80ºF), (8,930 @ 90ºF), (8,477 @ 95ºF), (8,024 @ 100ºF), (7,119 @ 110ºF)
Popular items frequently purchased together
Price unavailable
/EA
Price unavailable
/EA
Mfg #: MARS
24013
40 VA, 120 Volt Primary, 24 Volt Secondary, Relay/Transformer Fan Control Center, SPDT, 5 Screw Terminals
Price unavailable
/EA
Mfg #: Lrc Coil Company

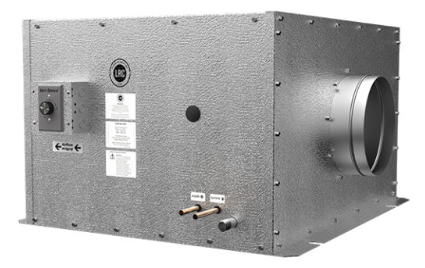

HS-66CL W/ EC
