The image shown is an example. The actual item may vary.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Mfg #: Tecumseh
1-1/4 HP, R404/448/449/452A, 208-230-1-60, Medium Temperature, ARGUS Condensing Unit
| Location | Available |
|---|---|
| Signal Hill | 2 |
| Las Vegas | 1 |
| Tustin | 1 |
| Concord | 0 |
| San Bernardino | 0 |
| Pomona | 0 |
| Cathedral City | 1 |
| San Jose | 0 |
| El Cajon | 0 |
| Van Nuys | 0 |
| City of Industry | 1 |
| West Los Angeles | 0 |
| Los Angeles | 1 |
| Torrance | 1 |
| San Diego | 1 |
| San Leandro | 0 |
| Escondido | 1 |
Item ID
2666501000
Mfg #
Tecumseh
Unit of Measure
EA
/images/items/ARGUS.JPG
Additional Unit Information
Defrost Timer Included
Application
Medium Temperature
AWEF (Annual Walk-In Energy Factor)
R404A (8.26), R448/449A (8.07), R452A (8.07)
Bill of Material
Bill of Material 2JH1006-PF (AWEF COMPLIANT)
Compressor
AWA9480ZXN, Bill of Material AW619ET-172-J7
Compressor - Family
AW
Compressor - LRA
52
Compressor - Type
Reciprocating
Connection - Liquid
3/8 ODF
Connection - Suction
5/8 ODF
Design Pressure - High
450
Design Pressure - Low
181
Dimension L x W x H (in)
28.5 x 39.9 x 21.5
Fan Motor - HP
1/20
Fan Motor - Quantity
2
Fan Motor - RLA
.45
HP
1.25
Min Circ Amps
13.9
Oil Type
Polyolester
Overload
---
Product
ARGUS Series Condensing Unit
Pump Down Capacity (lbs)
R404A (22.12), R448/449A (23.32), R452A (23.85)
Rating Point
25°F
Refrigerant
MULTI-REFRIGERANT
Relay
K71-62
Release Variant
Platinum, tube and fin with PSC fan motor
Run Capacitor
K150-07, 25 MFD/370 Volt
R448A/R449A Capacity (Btuh)
(12,553 @ 80ºF), (11,039 @ 90ºF), (10,282 @ 95ºF), (9,526 @ 100ºF), (8,012 @ 110ºF)
R452A Capacity (Btuh)
(12,682 @ 80ºF), (11,184 @ 90ºF), (10,435 @ 95ºF), (9,686 @ 100ºF), (8,187 @ 110ºF)
Start Capacitor
K146-43, 130_156 MFD/330 Volt
Type
Outdoor
Voltage
208-230-1-60
Weight (lbs)
238
Compressor - RLA
10.3
Max Fuse Amps
20
R404A Capacity (Btuh)
(14,027 @ 80ºF), (12,309 @ 90ºF), (11,451 @ 95ºF), (10,592 @ 100ºF), (8,874 @ 110ºF)
Popular items frequently purchased together
Price unavailable
/EA
Price unavailable
/EA
Price unavailable
/EA
Price unavailable
/EA
Mfg #: Tecumseh

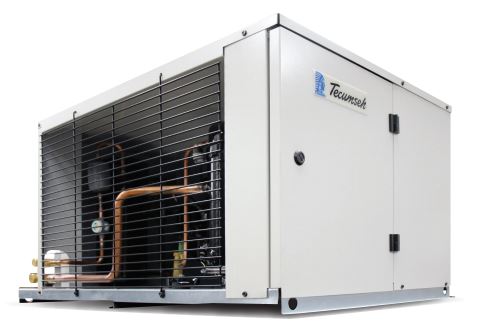

ASHS2512ZNAFP1 (2JH3007-PF)
