The image shown is an example. The actual item may vary.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Mfg #: Tecumseh
3/4 HP, R-404A/R-407A/R-448A/R-449A/R-452A, 208-230-1-60, Reciprocating Compressor
| Location | Available |
|---|---|
| Signal Hill | 0 |
| Las Vegas | 0 |
| Tustin | 0 |
| Concord | 1 |
| San Bernardino | 0 |
| Pomona | 0 |
| Cathedral City | 0 |
| San Jose | 0 |
| El Cajon | 0 |
| Van Nuys | 0 |
| City of Industry | 0 |
| West Los Angeles | 0 |
| Los Angeles | 0 |
| Torrance | 0 |
| San Diego | 0 |
| San Leandro | 1 |
| Escondido | 0 |
Item ID
2691220000
Mfg #
Tecumseh
Unit of Measure
EA
/images/items/AK Compressor.jpg
Application
CBP - Commercial Back Pressure
Bill of Material
Bill of Material AK172ET-038-J7
HP
.75
Motor Torque
High
Oil Type
Polyolester
Overload
K90-22
Product
Reciprocating Compressor
Rating Point
+20°F
Refrigerant
R-404A/R-407A/R-448A/R-449A/R-452A
Relay
K71-16
Release Variant
1st
Voltage
208/230-1-60
Weight (lbs)
44
Product Specific
AK Compressor
Motor Type
CSR
Compressor Family
AK
Condenser Temp (°F)
120°F
Discharge Line Size
1/4" ODF
Liquid Temperature (°F)
120°F
LRA
34
Oil Charge (cc)
512
Return Gas (°F)
40°F
RLA
6.8
Start Capacitor Mfd/Volt
72-88/330
Ambient Temperature (°F)
95°F
BTUH
6,250 (R-404A), 6,278 (R407A), 6,454 (R448/449A), 6,419 (R452A)
Displacement (cc)
22.304
Energy Efficiency Rating (Btu/Wh)
4.6
Motor Resistance (Ohm) - Main
1.72
Run Capacitor Mfd/Volt
15/370
Suction Line Size
1/2" SAE
Viscosity (cSt)
32
Max Continuous Current (Amp)
9.9
Motor Resistance (Ohm) - Start
10.23
Popular items frequently purchased together
Price unavailable
/EA
Price unavailable
/EA
Price unavailable
/EA
Price unavailable
/EA

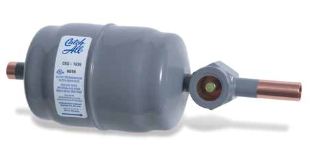

Mfg #: Sporlan
