The image shown is an example. The actual item may vary.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Mfg #: Tecumseh
1 HP, R404A/R507, 208-230-1-60, AW Series Condensing Unit
| Location | Available |
|---|---|
| Signal Hill | 1 |
| Las Vegas | 0 |
| Tustin | 1 |
| Concord | 1 |
| San Bernardino | 1 |
| Pomona | 1 |
| Cathedral City | 0 |
| San Jose | 1 |
| El Cajon | 1 |
| Van Nuys | 1 |
| City of Industry | 1 |
| West Los Angeles | 1 |
| Los Angeles | 1 |
| Torrance | 1 |
| San Diego | 1 |
| San Leandro | 0 |
| Escondido | 1 |
Item ID
2714160000
Mfg #
Tecumseh
Unit of Measure
EA
/images/items/AW Condesning Unit.jpg
Additional Unit Information
Std. Unit W/ Tank & BX Cable
Application
Low Temperature
Bill of Material
Bill of Material 2B1118-9
Capacity (Btuh)
4,800
Compressor
AWA2440ZXD
Compressor - Family
AW
Compressor - LRA
73
Compressor - Type
Reciprocating
Connection - Liquid
3/8 ODF
Connection - Suction
5/8 ODF
Dimension L x W x H (in)
24 x 17.8 x 15.4
Fan Motor - Quantity
1
HP
1
Key Word
AWA2440ZXD
Min Circ Amps
11.6
Motor Torque
High
Oil Charge (oz)
38
Oil Type
Polyolester
Overload
Internal
Product
AW Condensing Unit
Pump Down Capacity (lbs)
6.3
Rating Point
-10°F
Refrigerant
R-404A/507
Relay
K71-19
Release Variant
1st
Type
Indoor
Voltage
208-230-1-60
Voltage Range
187 to 253
Weight (lbs)
116
Compressor - RLA
8.7
Max Fuse Amps
15
Popular items frequently purchased together
Mfg #: Sporlan
SBFSE-A-Z (108618)
1/2 - 1 Ton, R-404A, 3/8" x 1/2" ODF, External Equalizer, Low Temperature TXV
Price unavailable
/EA

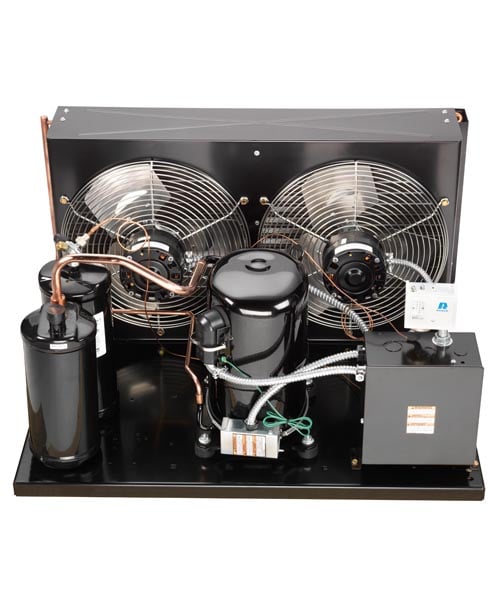

Mfg #: Tecumseh
AWA7512ZXDXC (2B3217-9)
1-1/2 HP, R404A/R507, 208-230-1-60, AW Series Condensing Unit
Price unavailable
/EA

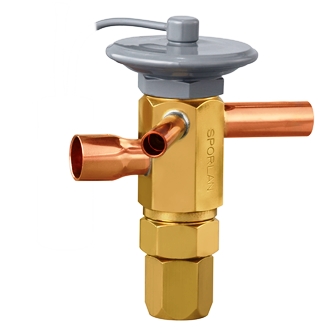

Mfg #: Sporlan
