Mfg #: U.S. Motors
1/2-1/5 HP, 208-230 Volt, 3.0/1.3 Amp, 1075 RPM, 2 Speed, Totally Enclosed Air Over, Reversible, Ball Bearing, PSC, 5.6" Diameter, RESCUE Condenser Fan Motor
| Location | Available |
|---|---|
| Signal Hill | 13 |
| Las Vegas | 2 |
| Tustin | 1 |
| Concord | 1 |
| San Bernardino | 2 |
| Pomona | 1 |
| Cathedral City | 4 |
| San Jose | 1 |
| El Cajon | 1 |
| Van Nuys | 1 |
| City of Industry | 1 |
| West Los Angeles | 1 |
| Los Angeles | 1 |
| Torrance | 1 |
| San Diego | 1 |
| San Leandro | 0 |
| Escondido | 0 |
Item ID
2900700000
Mfg #
U.S. Motors
Unit of Measure
EA
HP
1/2
Key Word
Condenser Motor
Model
K055WDK0405012B
Product
Condenser Fan Motor
Voltage
208-230
Product Specific
RESCUE Permanent Split Capacitor Condenser Fan Motor
RPM
1075
Additional Information
Permanent Split Capacitor
Weight
19
Shipping Weight
19
Mounting
Stud
Diameter
5.6"
Amps
3.0/1.3
Frequency (Hz)
60
Phase
1
Enclosure
Totally Enclosed Air Over
Speed
2
Ambient Temperature
140°F(60°C)
Rotation
Reversible
Leads
48"
Break Down Torque
67.55 OZFT
Capacitor (Mfd/Volt)
208V (12.5/370) or 230V (10/370)
Insulation Class
B
Load Factor
8.61
Locked Rotor Torque
9.447 OZFT
NEMA Frame
48Y
Service Factor
1.0
SFA
3.0/1.3
Bearing
Ball
Locked Rotor Amps
8.61
Popular items frequently purchased together
Price unavailable
/EA
Price unavailable
/EA
Price unavailable
/EA
Mfg #: Russell
08221175

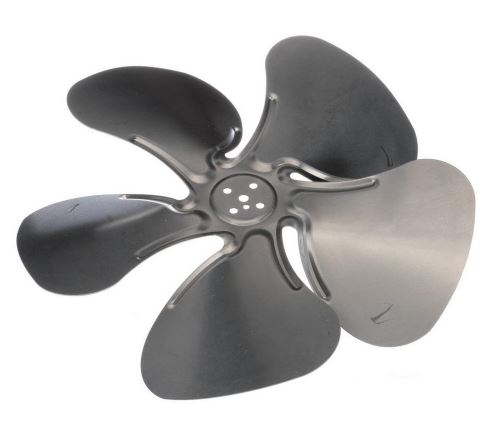

12" DIAM., 24° PITCH, CW, 5-Blade Propeller (For use with EC Motors)
