The image shown is an example. The actual item may vary.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Mfg #: U.S. Motors
1 HP, 115/208-230 Volt, 12.1/7.6-7.1 Amp, 1075/Var, Open Ventilated, Auto-Rotation Sensing, Ball Bearing, Constant Torque, 5.6" Diameter, EZ16 Universal EC Blower Motor
| Location | Available |
|---|---|
| Signal Hill | 1 |
| Las Vegas | 0 |
| Tustin | 0 |
| Concord | 1 |
| San Bernardino | 0 |
| Pomona | 0 |
| Cathedral City | 2 |
| San Jose | 0 |
| El Cajon | 1 |
| Van Nuys | 0 |
| City of Industry | 0 |
| West Los Angeles | 0 |
| Los Angeles | 0 |
| Torrance | 0 |
| San Diego | 0 |
| San Leandro | 0 |
| Escondido | 1 |
Item ID
2900738000
Mfg #
U.S. Motors
Unit of Measure
EA
HP
1
Product
Direct Drive Fan & Blower Motor
Voltage
115/230
Motor Type
FHP
RPM
1075
Additional Information
Universal 16-Pin ECM Replacement for ECM 2.0 2.3 EON
Shipping Weight
14
Diameter
5.6"
Volts
115
Enclosure
Open Ventilated
Model Number
M055AYE3643015B
Hertz
60
Rotation
Reversible
Insulation Class
B
Ambient
40
Breakdown Torque UOM
OZFT
Full Load Amps Primary
12.1/7.6-7.1&12.1/7.6-7.1
Full Load Amps Primary
48
HP 2
1/3
Kilowatts
7.7
Locked Rotor Torque UOM
OZFT
Number of Speeds
1
Opposite End Bearing
6201
Poles
10
Shaft Code
Y
Shaft End Bearing
6201
Stack
1.875
Thermal Protection
ELECTRONICALLY PROTECTED MOTOR
Volts 2
208
Volts 3
230
Frame
48
Popular items frequently purchased together
Price unavailable
/EA
Mfg #: MARS
10589
3/4 HP, 115 Volt, 11.2 Amp, 1075 RPM, 3 Speed, Open Ventilated, Reversible, Sleeve Bearing, PSC, 5.6" Diameter, Blower Motor
Price unavailable
/EA
Price unavailable
/EA
Mfg #: MARS
10591
1 HP, 115 Volt, 5.6 Amp, 1075 RPM, 3 Speed, Open Ventilated, Reversible, Sleeve Bearing, PSC, 5.6" Diameter, Blower Motor
Price unavailable
/EA
Mfg #: Honeywell Home
TH1110U4000/U

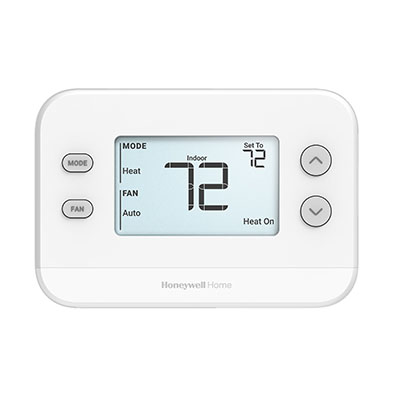

Digital Non-Programmable Single Stage N100 FocusPro Thermostat
