The image shown is an example. The actual item may vary.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Mfg #: Honeywell Home

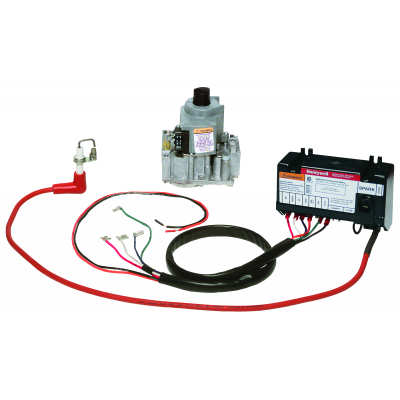

Universal Intermittent Pilot Ignition Kit
| Location | Available |
|---|---|
| Signal Hill | 13 |
| Las Vegas | 1 |
| Tustin | 0 |
| Concord | 1 |
| San Bernardino | 1 |
| Pomona | 3 |
| Cathedral City | 2 |
| San Jose | 1 |
| El Cajon | 1 |
| Van Nuys | 2 |
| City of Industry | 1 |
| West Los Angeles | 4 |
| Los Angeles | 1 |
| Torrance | 8 |
| San Diego | 1 |
| San Leandro | 1 |
| Escondido | 1 |
Item ID
1365010000
Mfg #
Honeywell Home
Unit of Measure
EA
Product
Intermittent Pilot Retrofit Kit
Product Specific
Universal Intermittent Pilot Ignition Kit
Additional Information
Intermittent Pilot Retrofit Kits save energy by converting atmospheric standing pilot systems to intermittent pilot. Typical applications are gas-fired atmospheric furnaces, boilers and heating appliances.
Capacity
270,000 BTU/H
Dimension
3-15/16" H x 5-7/16" W x 2-5/8" D
Includes
S8610U3009 and VR8304M with 1/2" by 3/4" inlet/outlet, Flange Kit, LP Conversion Kit
Frequency (Hz)
60
Electrical Ratings (Vac)
24 Vac
Ignition System Type
Intermittent Pilot
Flame Failure Response Time (sec)
2.0 sec
Flame Sense
Single Rod or Two Rods
Ignition Sequence
Continuous retry, after trial for ignition, pilot gas shuts off for 5 minutes, then another trial for pilot ignition takes place
Ignition Trial Time (Sec)
15 or 90 seconds
Ignition Trials To Lockout
continuous retry
Type of Gas
Natural or LP

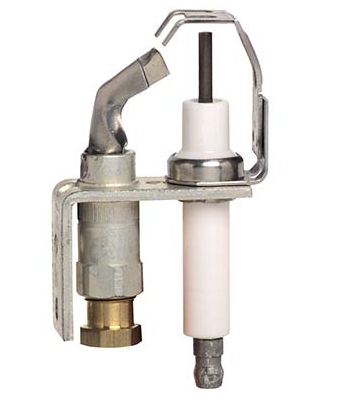

Typical Ignition Hardware
Q345, Q3451
Ignition Source
Internal high voltage spark generator
Lockout Timing (Sec)
15 or 90 seconds
Maximum Ambient Temperature (°F)
-40 °F to +165 °F
Maximum Valve Load @ 24 Vac (Amps)
1A Pilot, 2A Main @ 24Vac
PrePurge (Sec)
0 or 30 seconds
Typical Gas Control
VR8204, VR8304
